Products > Mechanical Seals > Single Spring Mechanical Seals > Mechanical Seals

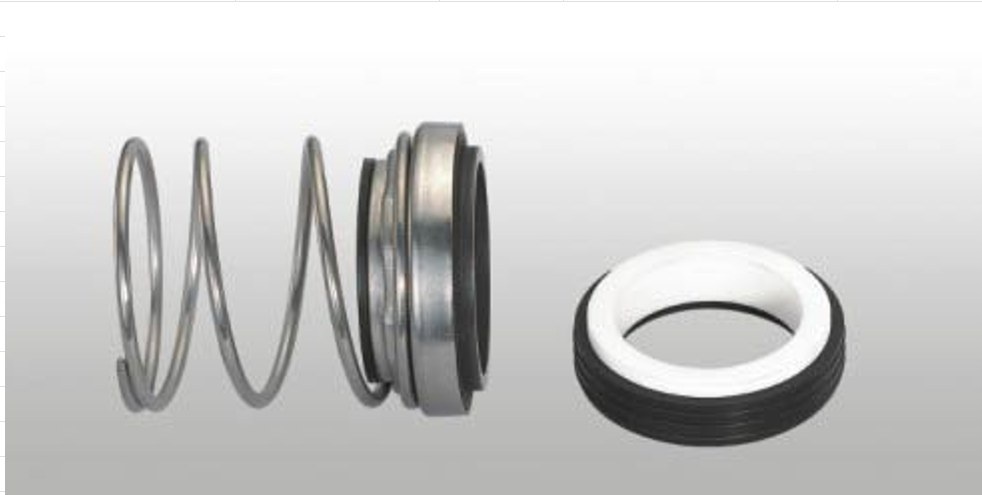

Product name : Mechanical Seals

Product No. : 166T

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

OPERATING LIMITS
Temperature: -30℃~+200℃
Pressure: ≤1MPa
Speed: ≤10m/s

MATERIAL
Spring(SUS304/SUS316)
Drive ring (SUS304/SUS316)
Retainer(SUS304/SUS316)
Bellows(NBR/EPDM/VITON)
Rotary ring (Carbon/SiC/TC)
Statianary Ring(Ceramic/SiC/TC)
Cup Gasket(NBR/EPDM/VITON)

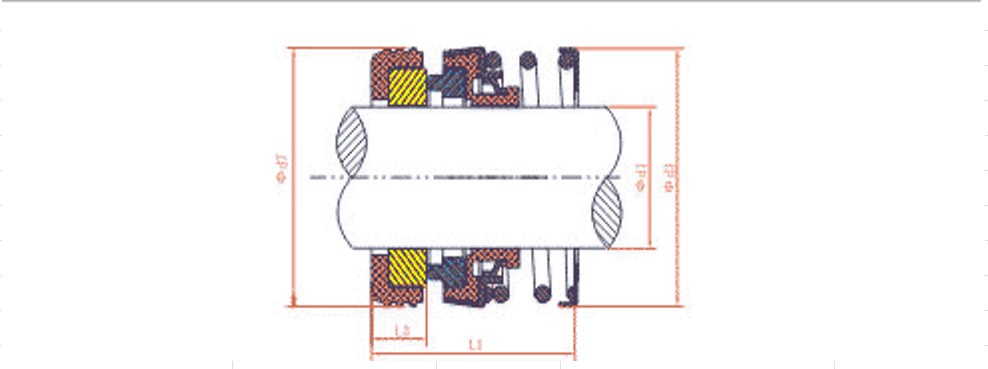

Model	d1	d3	d7	L1	L3
166T-3/8"	9.525	23.292	24.587	34.138	8.738
166T-1/2"	12.7	23.292	27.788	34.138	8.738
166T-5/8"	15.875	30.099	30.937	35.712	10.312
166T-3/4"	19.05	33.071	33.1/34.138	35.712	6.5/10.312
166T-7/8"	22.225	36.297	37.287	35.712	10.312
166T-1"	25.4	39.421	41.28/40.488	43.307	10.312
166T-1 1/8"	28.575	44.45	47.625	44.907	11.913
166T-1 1/4"	31.75	47.625	50.8	44.907	11.913
166T-1 3/8"	34.925	50.8	53.975	44.907	11.913
166T-1 1/2"	38.1	53.975	57.15	44.907	11.913
166T-1 5/8"	41.275	60.325	60.325	44.907	11.913
166T-1 3/4"	44.45	60.325	63.5	52.934	11.913
166T-1 7/8"	47.625	63.881	66.675	52.934	11.913
166T-2"	50.8	66.675	69.85	54.508	13.487
166T-12	12	23.3	27.8	34.1	8.7
166T-16	16	30.1	31	35.7	10.3
166T-20	20	36.3	35.7	35.7	10.3
166T-22	22	36.3	37.3	35.7	10.3
166T-24	24	39.4	40.5	35.7	10.3
166T-25	25	39.4	40.5	35.7	10.3
166T-28	28	44.4	47.7	45.2	11.9
166T-30	30	47.6	50.8	45.2	11.9
166T-32	32	47.6	50.8	45.2	11.9
166T-35	35	50.8	54	45.2	11.9
166T-38	38	54	57.2	45.2	11.9
166T-40	40	60.3	60.4	45.2	11.9
166T-45	46	66.7	63.5	52.4	11.9
166T-48	48	66.7	66.7	52.4	11.9
166T-50	50	66.7	69.9	54	13.5
