Products > Mechanical Seals > Single Spring Mechanical Seals > Mechanical Seals

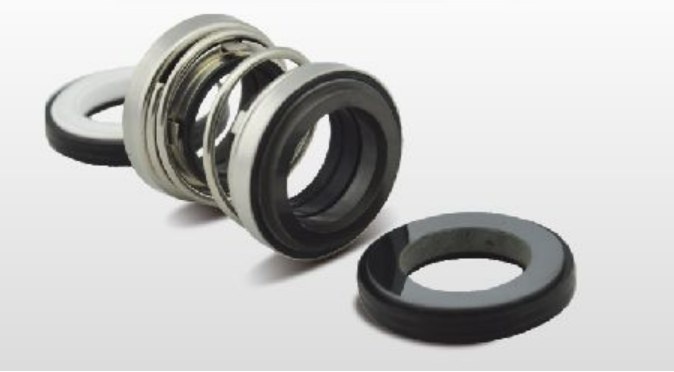

Product name : Mechanical Seals

Product No. : 208

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

OPERATING LIMITS
Temperature: -30℃~+200℃
Pressure: ≤1.2MPa
Speed: ≤10m/s


Stationary Ring(Ceramic/SiC/TC)
Rotary Ring(Plastic Carbon/Carbon/SiC/TC)
Secondary Ring(NBR/EPDM/VITON)
Spring and Retainer(SUS304/SUS316)

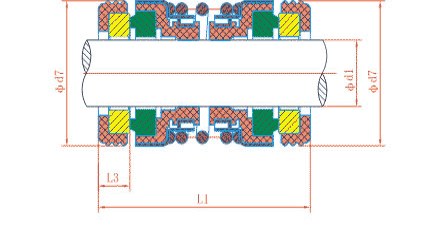

Model	d1	d7	L1	L3
208-10	10	21	30	5.5
208-12	12	23	30	5.5
208-14	14	26/28	38	6.5
208-16	16	28/30	38	6.5
208-18	18	33/35	38	8
208-20	20	35/36	40	8
208-25	25	40/41	48	8
208-30	30	45	51	8
208-35	35	50	51	8
208-40	40	58	58	9
208-45	45	63	58	9
