Products > Mechanical Seals > Single Spring Mechanical Seals > Mechanical Seals

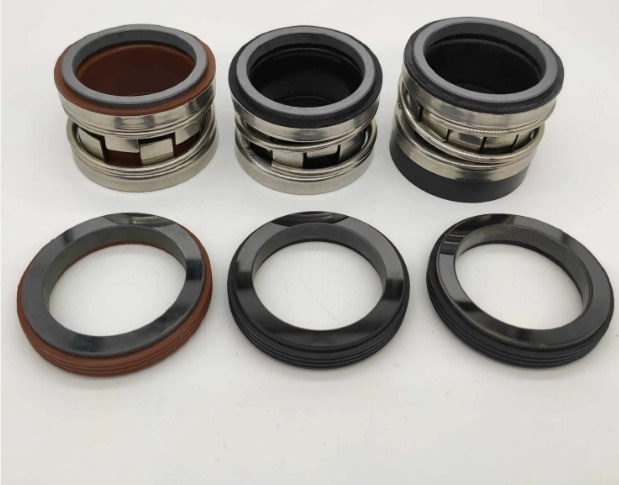

Product name : Mechanical Seals

Product No. : 2100

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

OPERATING LIMITS
Temperature:	-30℃～+200℃
Pressure:	≤1.2MPa
Speed:	≤10m/s

MATERIAL
Stationary Ring(Ceramic/SiC/TC)
Rotary Ring(Carbon/SiC/TC)
Secondary Seal(NBR/EPDM/VITON)
Spring & Other Parts(SUS304/SUS316)

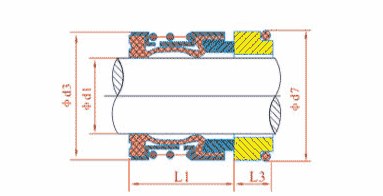

Model	d1	d3	d7	L1	L3
2100-16	16	26	27	15	12
2100-18	18	32	33	20	13.5
2100-20	20	34	35	20	13.5
2100-22	22	36	37	20	13.5
2100-24	24	38	39	20	13.5
2100-25	25	39	40	20	13
2100-28	28	42	43	26	12.5
2100-30	30	44	45	26	12
2100-32	32	46	48	26	12
2100-33	33	47	48	26	12
2100-35	35	49	50	26	12
2100-38	38	54	56	30	13
2100-40	40	56	58	30	13
2100-43	43	59	61	30	13
2100-45	45	61	63	30	13
2100-48	48	64	66	30	13
2100-50	50	66	70	30	13.5
2100-53	53	69	73	30	13.5
2100-55	55	71	75	30	13.5
2100-60	60	80	80	33	13.5
2100-65	65	85	85	33	13.5
2100-70	70	90	92	33	14.5
2100-75	75	99	97	40	14.5
