Products > Mechanical Seals > Single Spring Mechanical Seals > Mechanical Seals

Product name : Mechanical Seals

Product No. : E

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

OPERATING LIMITS
Temperature: -30℃~+200℃
Pressure: ≤1MPa
Speed: ≤12m/s

MATERIAL
Stationary Ring(Ceramic/SiC/TC)
Rotary Ring(Plastic Carbon/Carbon/SiC/TC)
Secondary Seal(NBR/EPDM/VITON)
Spring & Other Parts(SUS304/SUS316)

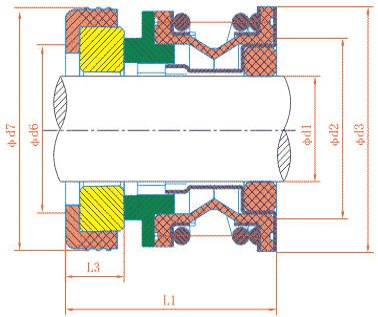

Model	d1	d7	d3	d6	d2	L1	L3
E-5/16"	7.925	25.4	27	16	20.63	24.6	8
E-3/8"	9.52	22.225	23.8	14.3	17.42	22.22	6.2
E-1/2"	12.7	25.4	26.97	17.45	20.63	22.8	6.2
E-5/8"	15.875	30.1	30.94	20.63	23.8	26.5	8.7
E-5/8"H	15.875	31.75	30.94	20.63	23.8	30	10.3
E-5/8"K	15.875	31.75	30.94	20.63	23.8	28.5	10.3
E-3/4"	19.05	34.925	34.11	23.8	26.87	30	10.3
E-3/4"C	19.05	34.925	34.11	23.8	26.87	28.5	10.3
E-1"	25.4	41.275	42.85	30.15	33.33	31.73	11.1
