Products > Mechanical Seals > Flygt pump Seals > Mechanical Seals

Product name : Mechanical Seals

Product No. : XD

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

Medium:
water,oil,crystallizing acid,alkali,high viscosity liquid,paper pulp,etc.


Design Features:
Except for the install length,all other dimensions are conform to ISO3069 DIN24960 and GB6556 standards.


Stationary Ring(Carbon/SiC/TC)
Rotary Ring(SiC/TC/SUS304/SUS316)
Secondary Seal(EPDM/PTFE/VITON)
Spring & Other Parts(SUS304/SUS316)

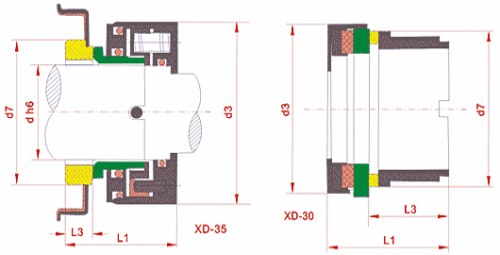

Seal size d(mm)	d3	d7	L1	L3
30	50	46	37.6	24.6
35	67	53.5	42.8	10.3
