Products > Mechanical Seals > Flygt pump Seals > Mechanical Seals

Product name : Mechanical Seals

Product No. : X

←[Previous Product]

Online Inquiry Email Us

Details:

OPERATING LIMITS
Temperature: -30℃~+200℃
Pressure: ≤1MPa
Speed: ≤5m/s

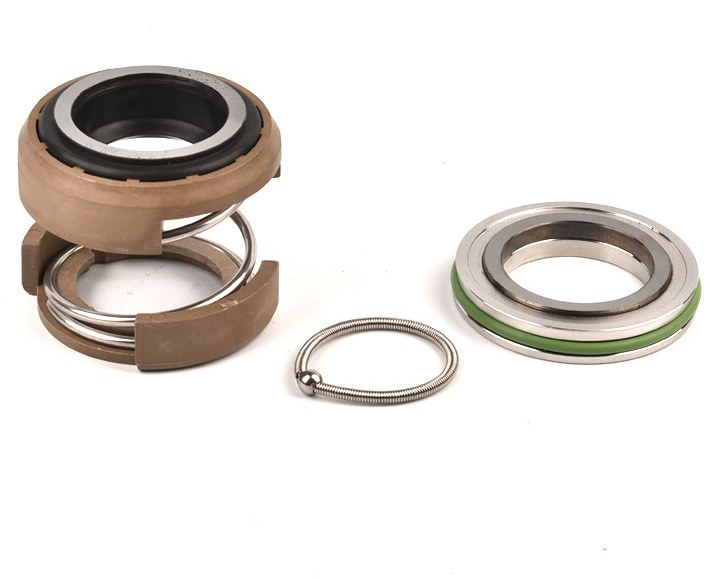

Stationary Ring(SiC/TC)
Rotary Ring(SiC/TC)
O-Ring(NBR/EPDM/VITON)
Spring(SUS304/SUS316)
Tension Spring(1Cr18Ni9Ti)
Stationary Seat(SUS304/SUS316)
Spring Cover(Bakelite/AI)
Retainer(Bakelite/AI)

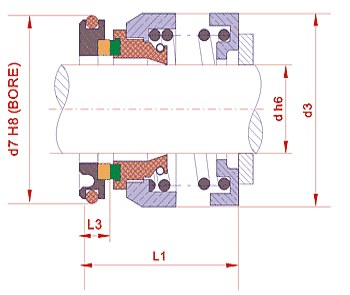

Seal size d(mm)	d3	d7	L1	L3
20	42.5	55.5	36.5	11
22	47	45.5	32.6	9
25	54	50.5	38.6	10
28	54	50.5	38.6	10
30	54	50.5	38.6	10
35	62	60.5	39.8	11
