Products > Mechanical Seals > Grundfos Pump Seals > Mechanical Seals

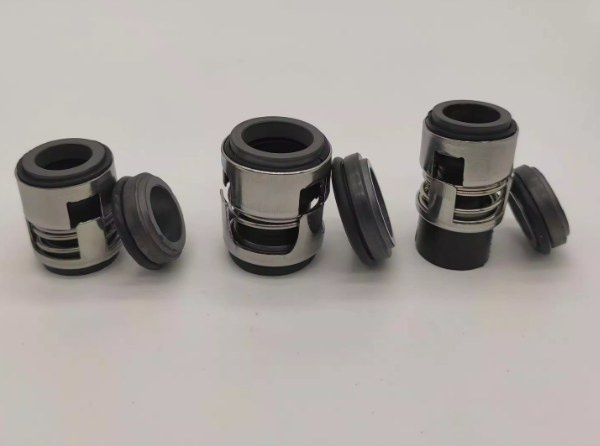

Product name : Mechanical Seals

Product No. : G3

←[Previous Product]

Online Inquiry Email Us

Details:

OPERATING LIMITS
Temperature: -20℃~+200℃
Pressure: ≤1.2MPa
Speed: ≤10m/s


Stationary Ring(Carbon/SiC/TC)
Rotary Ring(Ceramic/SiC/TC)
Retainer(SUS304/SUS316)
Spring(SUS304/SUS316)
Bellows(NBR/VITON)
O-Ring(NBR/VITON)

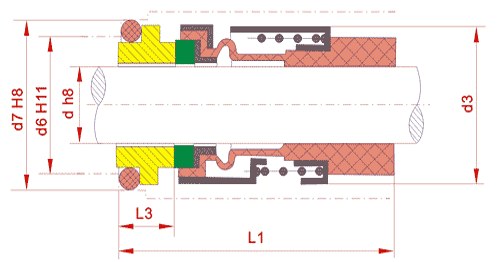

Seal size d(mm)	d3	d6	d7	L1	L3
12	22	19	23	39	7.6
12A	22	19	23	34	7.6
14	24	21	25	40.6	6.6
15	26	23	27	39	8.7
16	26	23	27	39	8.7
