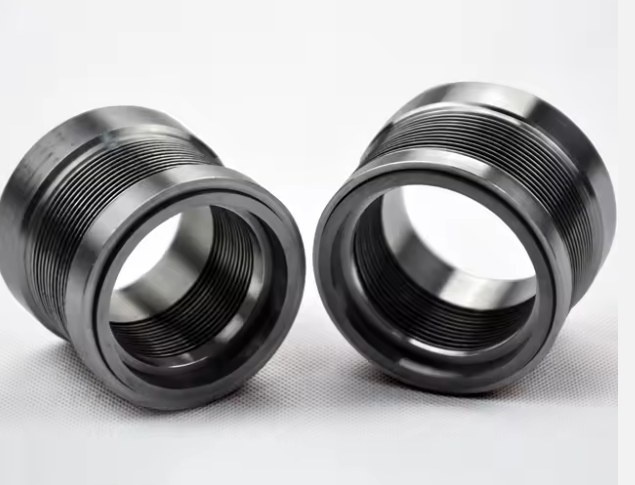

| Performance Capabilities |
|
|
|
| -Temperature: |
|
|
|
|
| -75℃ to +425℃/-100℉ to +800℉ |
|
|
| (with flexible graphite static packing) |
|
| |
|
|
|
|
|
| -Pressure: |
|
|
|
|
| Vacuum to 25 bar/360 psi |
|
|
|
| Vacuum to 69 bar/1,000 psi (with DOUBLE-PLY bellows) |
| |
|
|
|
|
|
| -Speed: |
|
|
|
|
|
| up to 25m/s/5,000 fpm |
|
|
|
| |
inch |
mm |

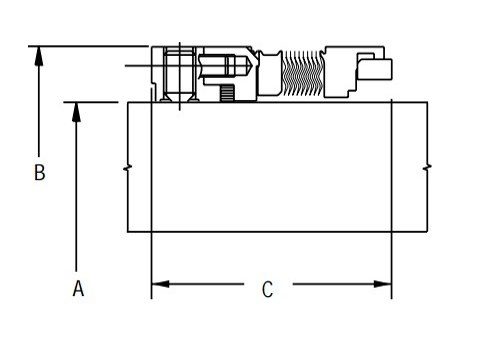

| size code |
A |
B |
C |
A |
B |
C |
| -16 |
1.000 |
1.625 |
1.531 |
25.40 |
41.28 |
38.89 |
| -18 |
1.125 |
1.750 |
1.562 |
28.58 |
44.45 |
39.67 |
| -20 |
1.250 |
1.875 |
1.593 |
31.75 |
47.63 |
40.46 |
| -22 |
1.375 |
2.000 |
1.593 |
34.93 |
50.80 |
40.46 |
| -24 |
1.500 |
2.125 |
1.593 |
38.10 |
53.98 |
40.46 |
| -26 |
1.625 |
2.250 |
1.593 |
41.28 |
57.15 |
40.46 |
| -28 |
1.750 |
2.375 |
1.625 |
44.45 |
60.33 |
41.28 |
| -30 |
1.875 |
2.500 |
1.625 |
47.63 |
63.50 |
41.28 |
| -32 |
2.000 |
2.625 |
1.656 |
50.80 |
66.68 |
42.06 |
| -34 |
2.125 |
2.750 |
1.656 |
53.98 |
69.85 |
42.06 |
| -36 |
2.250 |
2.875 |
1.719 |
57.15 |
73.03 |
43.66 |
| -38 |
2.375 |
3.000 |
1.719 |
60.33 |
76.20 |
43.66 |
| -40 |
2.500 |
3.250 |
1.750 |
63.50 |
82.55 |
44.45 |
| -42 |
2.625 |
3.375 |
1.781 |
66.68 |
85.73 |
45.24 |
| -44 |
2.750 |
3.500 |
1.781 |
69.85 |
88.90 |
45.24 |
| -46 |
2.875 |
3.687 |
1.875 |
73.03 |
93.65 |
47.63 |
| -48 |
3.000 |
3.812 |
1.875 |
76.20 |
96.82 |
47.63 |
| -50 |
3.125 |
4.000 |
1.875 |
79.38 |
101.60 |
47.63 |
| -52 |
3.250 |
4.125 |
1.875 |
82.55 |
104.78 |
47.63 |
| -54 |
3.375 |
4.250 |
1.875 |
85.73 |
107.95 |
47.63 |
| -56 |
3.500 |
4.375 |
1.875 |
88.90 |
111.13 |
47.63 |
| -58 |
3.625 |
4.500 |
1.875 |
92.08 |
114.30 |
47.63 |
| -60 |
3.750 |
4.625 |
1.875 |
95.25 |
117.48 |
47.63 |
| -62 |
3.875 |
4.750 |
1.875 |
98.43 |
120.65 |
47.63 |
| -64 |
4.000 |
4.875 |
1.875 |
101.60 |
123.83 |
47.63 |
|
