Products > Mechanical Seals > Multiple Spring Mechanical Seals > Mechanical Seals

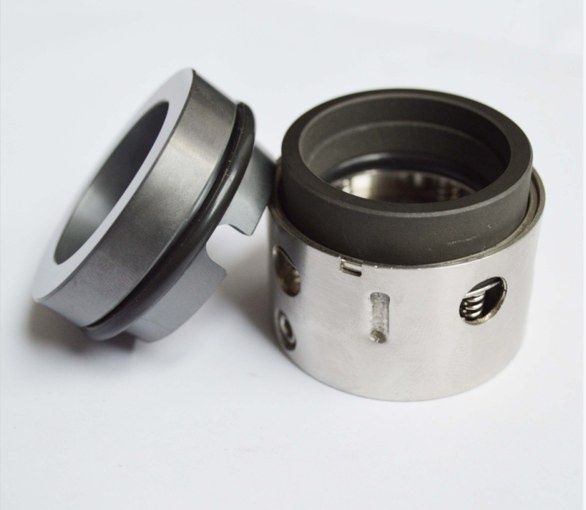

Product name : Mechanical Seals

Product No. : 58U(59U)

←[Previous Product]

Online Inquiry Email Us

Details:

OPERATING LIMITS
Temperature:	-20°C~+200°C
Pressure:	≤1.7MPa
Speed:	≤25m/s

MATERIAL
Stationary Ring(SiC/TC/Ceramic)
Rotary Ring(SiC/TC/Carbon)
Secondary Seal(VITON/PTFE/PTFE+VITON)
Spring & Other Parts(SUS304/SUS316)

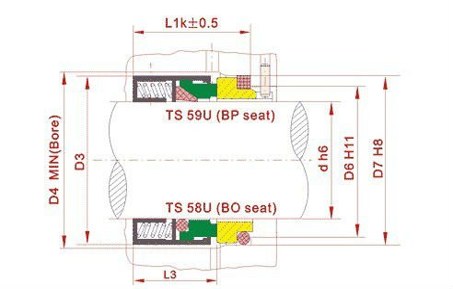

Seal size d(mm)	D3	D4	L1K	L3	D6	D7
14	24	26	35	23	21	25
16	26	28	35	23	23	27
18	32	34	37.5	24	27	33
20	34	36	37.5	24	29	35
22	36	38	37.5	24	31	37
24	38	40	40	26.7	33	39
25	39	41	40	27	34	40
28	42	44	42.5	30	37	43
30	44	46	42.5	30.5	39	45
32	46	48	42.5	30.5	42	48
33	47	49	42.5	30.5	42	48
35	49	51	42.5	30.5	44	50
38	54	58	45	32	49	56
40	55	60	45	32	51	58
43	59	63	45	32	54	61
45	61	65	45	32	56	63
48	64	68	45	32	59	66
50	66	70	47.5	34	62	70
53	69	73	47.5	34	65	73
55	71	75	47.5	34	67	75
58	78	83	52.5	39	70	78
60	80	85	52.5	39	72	80
63	83	88	52.5	39	75	83
65	85	90	52.5	39	77	85
68	88	93	52.5	39	81	90
70	90	95	60	45.5	83	92
75	95	104	60	45.5	88	97
80	104	109	60	45	95	105
85	109	114	60	45	100	110
90	114	119	65	50	105	115
95	119	124	65	50	110	120
100	124	129	65	50	115	125
