Products > Mechanical Seals > Wave Spring Mechanical Seals > Mechanical Seals

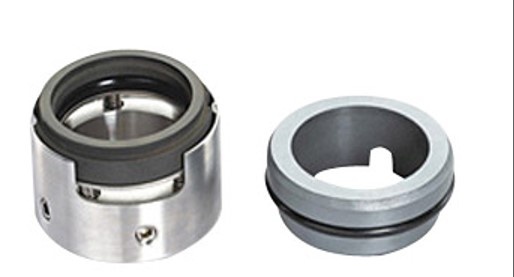

Product name : Mechanical Seals

Product No. : M74N

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

OPERATING LIMITS
Temperature: -30℃~+200℃
Pressure: ≤1.6MPa
Speed: ≤20m/s

●Stationary Ring(Carbon/SiC/TC)
●Rotary Ring(SiC/TC/Carbon)
●Secondary Seal(VITON/PTFE+VITON)
●Spring & Other Parts(SUS304/SUS316)

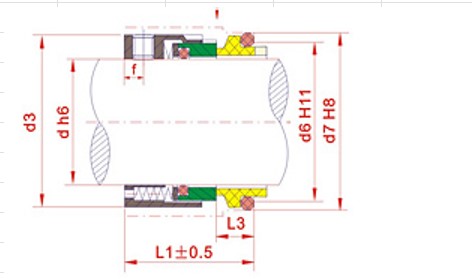

Seal size d(mm)	d3	d6	d7	L1	L3	f
14	25	21	25	35.0	10.0	6
16	27	23	27	35.0	10.0	6
18	33	29	33	37.5	11.5	7
20	35	29	35	37.5	11.5	7
22	37	31	37	37.5	11.5	7
24	39	33	39	40.0	11.5	8
25	40	34	40	40.0	11.5	8
28	43	37	43	42.5	11.5	8
30	45	39	45	42.5	11.5	8
32	47	42	48	42.5	11.5	8
33	48	42	48	42.5	11.5	8
35	50	44	50	42.5	11.5	8
38	55	49	56	45.0	14.0	8
40	57	51	58	45.0	14.0	8
43	60	54	61	45.0	14.0	8
45	62	56	63	45.0	14.0	8
48	65	59	66	45.0	14.0	8
50	67	62	70	47.5	15.0	8
53	70	65	73	47.5	15.0	8
55	72	67	75	47.5	15.0	8
58	79	70	78	52.5	15.0	9
60	81	72	80	52.5	15.0	9
63	84	75	83	52.5	15.0	9
65	86	77	85	52.5	15.0	9
68	89	81	90	52.5	18.0	9
70	91	83	92	60.0	18.0	9
75	99	88	97	60.0	18.0	10
80	104	95	105	60.0	18.2	10
85	109	100	110	60.0	18.2	10
90	114	105	115	65.0	18.2	10
95	119	110	120	65.0	17.2	10
100	124	115	125	65.0	17.2	10
