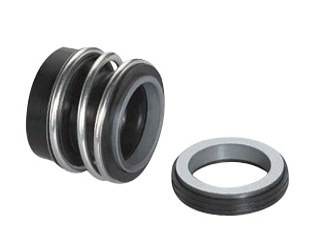

Product name : Mechanical Seals
Product No. : MG12
←[Previous Product]
Online Inquiry         Email Us

  Details:

OPERATING LIMITS
Temperature: -20℃~+120℃
Pressure: ≤1.2MPa
Speed: ≤10m/s

MATERIAL
Stationary Ring(Ceramic/SiC/TC)
Rotary Ring(Carbon/SiC/TC)
Secondary Seal(NBR/EPDM/VITON)
Spring & Other Parts(SUS304/SUS316)

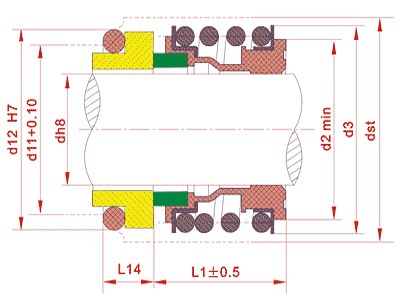

Seal size d(mm) d d2 dst d3 d7 L1K L28
10 10 20.5 24 22.5 21 32.5 6.6
12 12 22.5 26 25 23 32.5 6.6
14 14 26.5 30 28.5 25 35 6.6
16 16 26.5 30 28.5 27 35 6.6
18 18 29 33 32 33 37.5 7.5
20 20 33 38 37 35 37.5 7.5
22 22 33 38 37 37 37.5 7.5
24 24 38 44 42.5 39 40 7.5
25 25 38 44 42.5 40 40 7.5
28 28 44 50 49 43 42.5 7.5
30 30 44 50 49 45 42.5 7.5
32 32 46 55 53.5 48 42.5 7.5
33 33 46 55 53.5 48 42.5 7.5
35 35 50 59 57 50 42.5 7.5
38 38 53 61 59 56 45 9
40 40 55 64 62 58 45 9
43 43 58 67 65.5 61 45 9
45 45 60 70 68 63 45 9
48 48 63 74 70.5 66 45 9
50 50 65 77 74 70 47.5 9.5
53 53 70 81 78.5 73 47.5 11
55 55 72 83 81 75 47.5 11
58 58 75 88 85.5 78 52.5 11
60 60 79 91 88.5 80 52.5 11
65 65 84 96 93.5 85 52.5 11
68 68 88 100 96.5 90 52.5 11.3
70 70 90 103 99.5 92 60 11.3
75 75 95 110 107 97 60 11.3
80 80 100 116 112 105 60 12
85 85 107 124 120 110 60 14
90 90 114 131 127 115 65 14
95 95 119 136 132 120 65 14
100 100 124 140 137 125 65 14
