Products > Mechanical Seals > Single Spring Mechanical Seals > Mechanical Seals

Product name : Mechanical Seals

Product No. : TYPE 2

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

Temperature: -30℃~+200℃
Pressure: ≤2.8MPa
Speed: ≤13m/s

MATERIAL
Stationary Ring(Ceramic/SiC/TC)
Rotary Ring(Carbon/SiC/TC)
Secondary Seal(NBR/EPDM/VITON)
Spring & Other Parts(SUS304/SUS316)

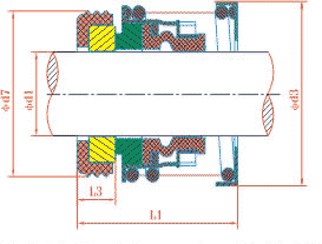

Model	d1	d3	d7	L1	L3
TYPE2-3/8"	9.525	28	24.6	33.7	8.7
TYPE2-1/2"	12.7	32	27.8	33.7	8.7
TYPE2-5/8"	15.875	35	30.95	35.3	10.3
TYPE2-3/4"	19.05	40	34.15	35.3	10.3
TYPE2-7/8"	22.225	43	37.3	35.3	10.3
TYPE2-1"	25.4	47	40.5	36.9	11.9
TYPE2-1 1/8"	28.575	56	47.65	44.9	11.9
TYPE2-1 1/4"	31.75	59	50.8	44.9	11.9
TYPE2-1 3/8"	34.925	63	54	44.9	11.9
TYPE2-1 1/2"	38.1	67	57.15	44.9	11.9
TYPE2-1 5/8"	41.275	71	60.35	44.9	11.9
TYPE2-1 3/4"	44.45	74	63.5	52.9	11.9
TYPE2-1 7/8"	47.625	77	66.7	52.9	11.9
TYPE2-2"	50.8	81	69.85	54.5	13.5
TYPE2-2 1/8"	53.97	84	73.05	54.5	13.5
TYPE2-2 1/4"	57.15	88	76.2	54.5	13.5
TYPE2-2 3/8"	60.32	91	79.4	54.5	13.5
TYPE2-2 1/2"	63.5	94	82.55	54.5	13.5
