Products > Mechanical Seals > Single Spring Mechanical Seals > Mechanical Seals

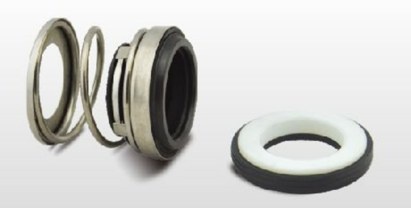

Product name : Mechanical Seals

Product No. : 108

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

OPERATING LIMITS
Temperature: -30℃~+200℃
Pressure: ≤1MPa
Speed: ≤10m/s


Stationary Ring(Ceramic/SiC/TC)
Rotary Ring(Plastic Carbon/Carbon/SiC/TC)
Secondary Seal(NBR/EPDM/VITON)
Spring & Other Parts(SUS304/SUS316)

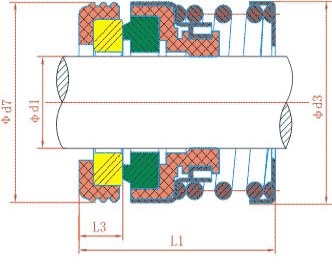

Model	d1	d3	d7	L1	L3
108-9	9	20	21	20	4.5
108-10	10	20	21	20	4.5
108-11	11	22	23	20	4.5
108-12	12	22	23	20	4.5
108-14	14	24.5	25	25	5.5
108-15	15	26.5	27	25	5.5
108-16	16	26.5	27	25	5.5
108-17	17	32	33	25	7
108-18	18	32	33	25	7
108-19	19	34	35	25	7
108-20	20	34	35	25	7
108-22	22	36	37	28	7
108-25	25	39	40	32	7
108-28	28	42	43	35	7
108-30	30	44	45	35	7
108-35	35	49	50	37	7
108-40	40	56	58	40	8
108-45	45	61	63	40	8
108-50	50	67	70	45	8.5
108-55	55	72	75	45	8.5
