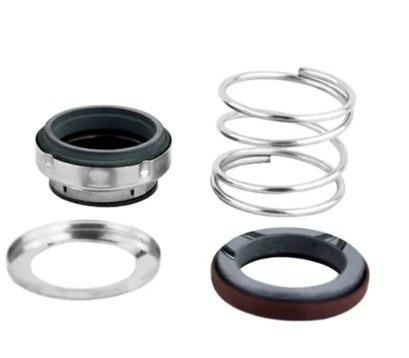

Product name : Mechanical Seals
Product No. : BIA
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

OPERATING LIMITS
Temperature: -30℃~+200℃
Pressure: ≤1MPa
Speed: ≤10m/s


Stationary Ring(Ceramic/SiC/TC)
Rotary Ring(Plastic Carbon/Carbon/SiC/TC)
Secondary Seal(NBR/EPDM/VITON)
Spring & Other Parts(S.S/SUS304/SUS316)

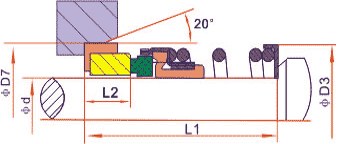

Model d D3 D7 L1 L2
BIA-14 14 27 30 23.7 5
BIA-16 16 28.5 32 26 5
BIA-18 18 30.5 35 30 7.5
BIA-20 20 31.5 35 29 8
BIA-25 25 39 40 33.5 8
BIA-28 28 42 43 33.5 8
BIA-30 30 44 45 34.5 9
BIA-32 32 46 48 42.5 9
BIA-33 33 47 48 42.5 9
BIA-35 35 49 50 42.5 9
BIA-38 38 54 56 42.5 9
BIA-40 40 56 58 42.5 9
BIA-43 43 59 61 46 9.5
BIA-45 45 61 63 47.5 9.5
BIA-48 48 64 66 47.5 9.5
BIA-50 50 66 70 47.5 9.5
BIA-53 53 69 73 50.5 9.5
BIA-55 55 71 75 50.5 9.5
BIA-58 58 78 78 51.5 9.5
BIA-60 60 80 80 51.5 9.5
BIA-70 70 90 92 56 11
