Products > Mechanical Seals > Single Spring Mechanical Seals > Mechanical Seals

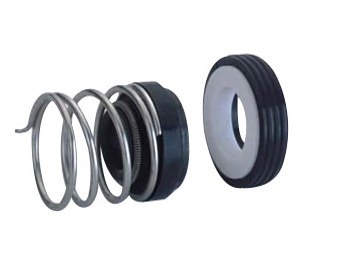

Product name : Mechanical Seals

Product No. : 156

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

OPERATING LIMITS
Temperature: -30℃~+200℃
Pressure: ≤0.6MPa
Speed: ≤10m/s

MATERIAL
Stationary Ring(Ceramic/SiC/TC)
Rotary Ring(Plastic Carbon/Carbon/SiC/TC)
Secondary Seal(NBR/EPDM/VITON)
Spring & Other Parts(SUS304/SUS316)

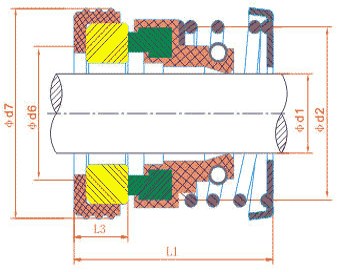

Model	d1	d2	d6	d7	L1	L3
156-8	8	16	13	18/21	18	7
156-9	9	20	16	21	23	7
156-10	10	20	16	20/22/24	23	7
156-11	11	20	16	24	23	7
156-12	12	22.5	17	26	24	7
156-13	13	22.5	17	26	24	7
156-14	14	24.5	21	28/30	25	7
156-15	15	24.5	21	28/30	25	7
156-16	16	28.5	22	32	27	8
156-17	17	28.5	22	32	27	8
156-18	18	31.5	25	35	29	8
156-19	19	31.5	25	35	29	8
156-20	20	33.5	27	38	31	8
156-22	22	34.5	29	40	32	8
156-25	25	37.5	32	44	33	9
156-28	28	40.5	34	46	34	9
156-30	30	44.5	38	50	35	9
156-32	32	47.5	40	54	37	9
156-35	35	50.5	44	58	40	10
156-38	38	53.5	46	60	42	10
156-40	40	56.5	48	64	43	10
156-45	45	61.5	52	66	45	10
156-50	50	66.5	58	72	47	10
